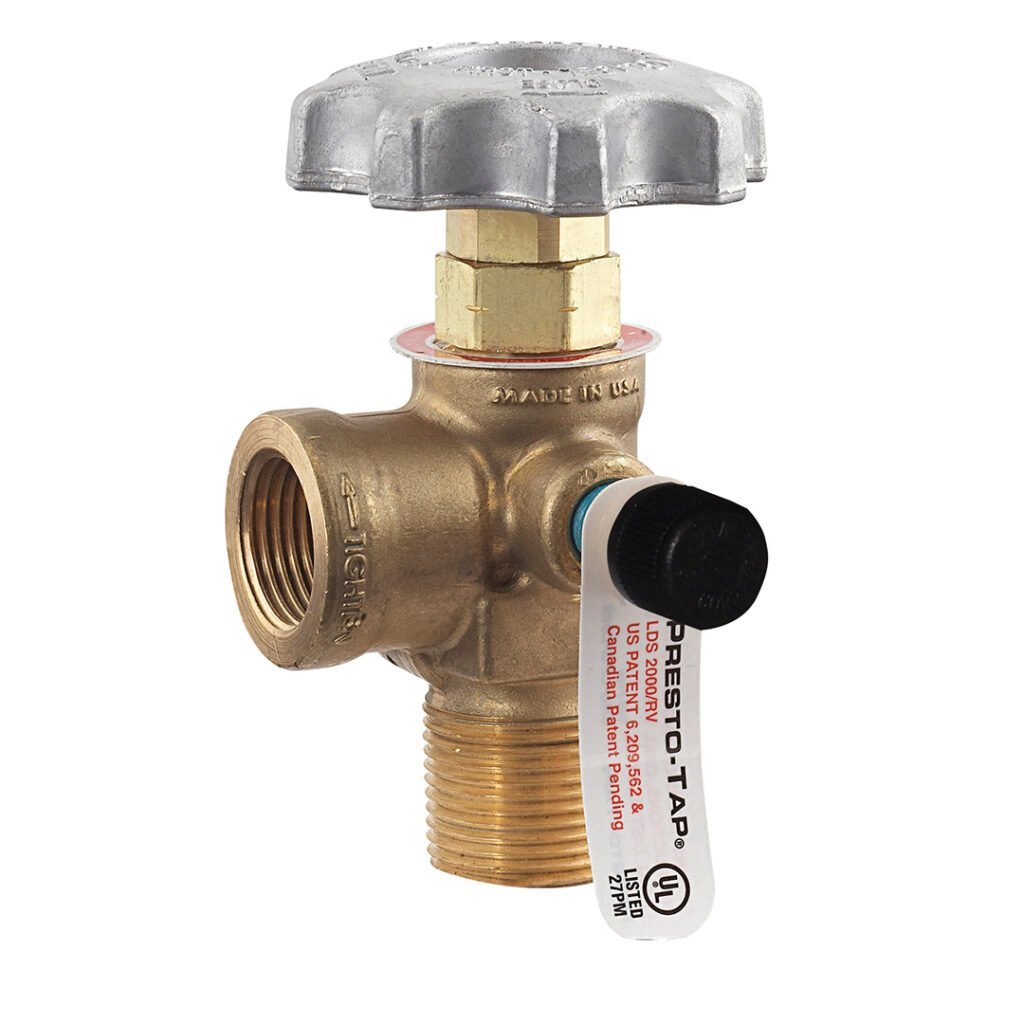

PT9102R1 SERVICE VALVE 3/4
| Product ID | 19196 |
| Part Number | PT9102R1 |
| Vendor | REGO Products |
$231.00
Service Valves for ASME and DOT Containers or Vapor Fuel Line Applications
Designed for vapor withdrawal service on ASME and DOT containers or in fuel line applications. Since none of these valves have an integral pressure relief valve, they may only be used as an accessory valve on containers that have an independent pressure relief valve sufficient for that container’s capacity.
Details:
- O-Ring stem seal design provides positive seal.
- Metal-to-metal back seat provides added protection against leakage while the valve is open.
- Valves with fixed liquid level gauges permit operator to quickly determine when the maximum permitted filling level of the container is reached.
- 9101R Series with MultiBonnet® assembly allows quick and easy repair of bonnet.
- PT9102R Series With the service valve closed the pressure test/Presto-Tap® port is isolated from the container. This will allow a high pressure leak test to be conducted without disconnecting the pigtail from the service valve. For more information, see page C13 on this feature
Product Applications: Domestic Solutions
Product Documents:
Product Specifications
Additional Specifications
| Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 100 (PSIG) | 20.6 GPM |
| Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 25 (PSIG) | 11.7 GPM |
| Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 10 (PSIG) | 7.6 GPM |
| Approximate Filling Rate Liquid Flow(GPM) Pressure Drop Across Valves 50 (PSIG) | 15.2 GPM |
| Container Connection (in.) | 3/4″ M. NGT |
| Service Connection (in.) | F. POL (CGA 510) |
| Bonnet Style | MultiBonnet® assembly |
| Brand | RegO |
| Container Connection Type | M. NGT |
| Dip Tube Length W Deflector | N/A |
| Fixed Liquid Level Vent Valve | No |
| Materials | Body, Forged Brass |Handwheel, Aluminum Die Cast |Stem, Brass |O-Rings, Resilient Synthetic Rubber |Seat Disc, Nylon |
| Ready To Go™ | Yes |
| Service Connection Type | F. POL |
